Older commercial buildings were constructed in a different era — one where lightning protection standards were minimal, inconsistently enforced, or simply non-existent. Today, if your facility lacks a compliant system, you are not just operating with an asset-protection gap; you are carrying significant liability exposure every storm season.

A retrofit lightning protection system installation is the engineered answer. But retrofitting is not the same as starting from scratch. Every existing structure presents its own set of physical, operational, and regulatory hurdles — from routing conductors around decades-old facades to coordinating surge protection across complex electrical infrastructure.

This guide breaks down the real-world challenges of adding lightning protection to existing buildings and the practical solutions that experienced lightning protection contractors use to get the job done right.

Quick Stat: The National Fire Protection Association (NFPA) estimates that lightning causes hundreds of millions of dollars in structural and equipment damage to commercial properties in the U.S. each year — the vast majority occurring in buildings without compliant protection systems.

Why Lightning Protection for Older Buildings Is a Growing Priority

For decades, lightning protection was viewed as an optional add-on — something new construction teams might include if the budget allowed. That mindset has shifted dramatically. Several forces are now pushing commercial property owners toward action.

Changing Insurance Requirements

Commercial insurers are increasingly scrutinizing lightning protection compliance as part of policy renewals and underwriting reviews. Buildings without verified protection systems may face higher premiums, reduced coverage limits, or outright policy exclusions for lightning-related claims. Many facility managers first discover their compliance gap during an insurance audit, not an inspection.

Updated Code and Standards Compliance

NFPA 780, the Standard for the Installation of Lightning Protection Systems, along with UL 96A certification requirements, has become the benchmark for commercial lightning protection in the United States. Buildings that predate these standards — or that were never inspected against them — frequently fall short in ways that create legal and financial risk. A retrofit brings the structure into current compliance without requiring a full rebuild.

Rising Equipment Vulnerability

Modern commercial buildings are far more electronically dense than their predecessors. HVAC control systems, server infrastructure, security networks, POS systems, and industrial equipment all depend on clean, stable power. A direct strike or even a nearby ground flash can induce transient voltages across these systems. Commercial building retrofit surge protection is not a luxury — it is core infrastructure.

The Real Challenges of Retrofit Lightning Protection System Installation

Installing lightning protection on a new structure is a controlled exercise. Conductors are planned into the design, rods are specified before roofing is laid, and grounding systems are integrated during foundation work. On an existing building, none of those advantages exist. Here is what contractors and facility managers consistently encounter.

1. Architectural and Facade Constraints

Historic commercial buildings, ornate masonry structures, and heavily clad facades present significant routing obstacles. Running copper or aluminum conductors down the exterior of a building with intricate stonework, EIFS coatings, or architectural metalwork requires planning that goes well beyond a standard installation. Conductors must be fastened without causing moisture infiltration, staining, or structural damage — and in some cases, local historic preservation codes govern what can and cannot be modified on the exterior.

Solutions here typically involve concealed raceways, color-matched conductor runs, or interior routing through mechanical chases where the building layout permits. The goal is a system that meets NFPA 780 conductor spacing and routing specifications without compromising the building’s aesthetic or structural integrity.

2. Grounding System Integration

An effective lightning protection ground is not just a rod driven into the soil. Code-compliant grounding requires a ring ground conductor encircling the building’s perimeter, bonded to structural steel, utility grounds, and any existing grounding electrodes. On older buildings — especially those with multiple additions, mismatched electrical systems, or deteriorated original grounding infrastructure — achieving a unified, low-impedance ground path is a complex task.

Ground resistance testing (typically targeting 10 ohms or less per NFPA 780 guidance) often reveals that existing grounds are insufficient. Supplemental grounding electrodes, ground enhancement materials, and careful bonding to all metallic building systems may be required before the system can be certified.

3. Creative Conductor Routing on Existing Structures

This is where retrofit installations depart most sharply from new construction. Conductors cannot always follow the preferred straight, direct path to ground when walls are finished, rooftops are occupied by mechanical equipment, and architectural features interrupt ideal routing. NFPA 780 allows for some routing flexibility, but deviations must be carefully evaluated to avoid creating unacceptable side-flash risk or compromising the protection zone.

Experienced installers use a combination of techniques: rooftop cable trays, through-wall penetrations with appropriate sealing, interior riser shafts, and, in some cases, custom-fabricated standoffs that hold conductors away from metallic surfaces. Every routing decision is documented and reviewed against code to ensure the system performs as intended.

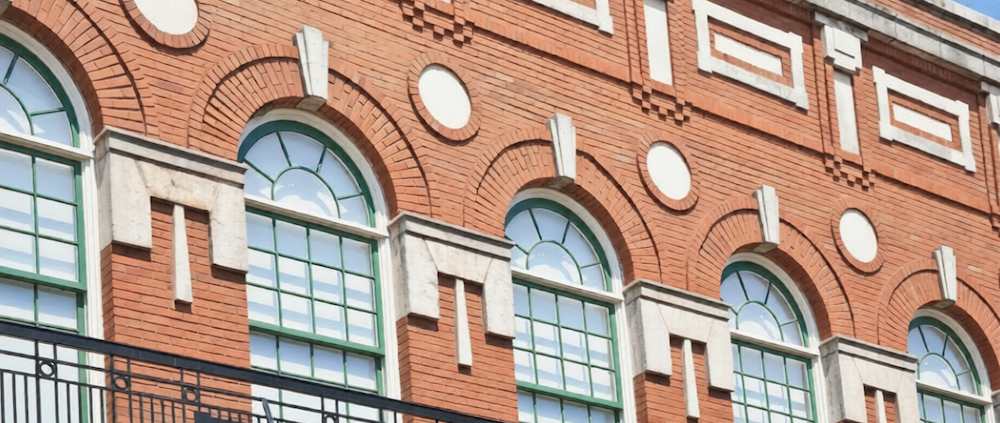

retrofit lightning protection system installation on older commercial building roofline

4. Surge Protection Integration Across Legacy Electrical Systems

A complete commercial lightning protection system includes more than air terminals and conductors. Surge protective devices (SPDs) at the service entrance, distribution panels, and point-of-use locations form a coordinated defense against induced transients. On older buildings with aging electrical infrastructure — split-bus panels, ungrounded systems, or original service entrance equipment — integrating modern SPDs requires careful coordination with a licensed electrician and sometimes requires electrical upgrades before SPD installation is possible.

Commercial building retrofit surge protection planning should map every sensitive load in the facility and develop a layered protection strategy that accounts for both direct strikes and nearby events. This is not a one-size-fits-all process; it requires site-specific engineering.

5. Operational Continuity During Installation

Many older commercial buildings are occupied facilities — retail centers, office complexes, medical buildings, or industrial plants that cannot shut down for a retrofit project. Coordinating installation work around occupied space, operating HVAC equipment, active loading docks, and tenant schedules adds significant project management complexity. Phased installation plans, scheduling after-hours work, and clear communication with building occupants are essential to keeping the project on track without disrupting operations.

Pro Tip: Request a pre-installation lightning risk assessment (per IEC 62305 or NFPA 780 Annex L methodology) before scoping your retrofit. It quantifies your building’s actual risk level and ensures the protection system design is appropriately engineered — not over- or under-specified.

Proven Solutions for Adding Lightning Rods to Existing Buildings

Challenges do not make a retrofit impossible — they make experience and engineering discipline essential. Here is how the most successful commercial retrofit projects address each obstacle.

Comprehensive Pre-Installation Survey

Before a single conductor is cut, a qualified lightning protection contractor should conduct a detailed site survey. This survey maps all roof penetrations, identifies metallic masses requiring bonding, locates existing grounding infrastructure, assesses facade materials and routing options, and documents any code constraints. The survey output drives the system design and prevents costly surprises mid-installation. On complex buildings, this survey may also involve coordination with structural engineers, architects, or historic preservation consultants.

System Design to NFPA 780 and UL 96A

A compliant retrofit system must be designed — not improvised. Proper system design specifies:

Placement of air terminals (lightning rods) based on the rolling sphere method or zone of protection calculations
Routing and sizing of main conductors and ground leads
Number and type of grounding electrodes
All bonding connections to structural steel and metallic systems
The coordinated surge protection scheme for electrical and data systems

UL 96A, the Standard for Installation Requirements for Lightning Protection Systems, defines the minimum installation requirements that any certified retrofit system must meet. This design document becomes the blueprint for installation and the record for inspection and certification.

Working with Specialty Fastening and Concealment Systems

The hardware available for retrofit conductor attachment has advanced significantly. Low-profile clamps designed for standing seam metal roofs, non-penetrating weighted cable trays for membrane roofs, concealed raceway systems for masonry and precast concrete facades, and color-matched conductors for aesthetic-sensitive applications all allow installers to route systems that would have been impractical a generation ago. Matching the right fastening system to each surface type is a key skill that separates experienced retrofit contractors from those who treat every job the same.

Phased Installation for Occupied Buildings

A well-managed retrofit on an occupied commercial facility is completed in logical phases: rooftop and upper floor work first, conductor routing down the building envelope second, grounding system installation third, and final bonding and surge protection integration last. Each phase is coordinated with facility management, documented, and inspected before the next begins. This approach keeps the project organized, minimizes disruption, and allows for interim protection measures if needed during a multi-week installation.

Certification, Inspection, and Ongoing Compliance

A retrofit installation is only as good as its certification. Upon completion, the system should be inspected and certified by a qualified third party — either a UL-listed installer who can issue a UL Master Label, or an independent inspector holding LPI-IP (Lightning Protection Institute Inspection Program) credentials. This certification documents that the system has been installed in accordance with applicable standards and is suitable for the purpose for which it was designed.

What Certification Covers

Air terminal placement, height, and spacing compliance
Conductor sizing, routing, and fastening verification
Ground resistance testing results
All bonding connections documented and verified
Surge protective device installation and coordination review

Ongoing Inspection Requirements

NFPA 780 recommends that lightning protection systems be inspected after any significant modification to the structure, after a known lightning strike event, and on a regular periodic basis — typically every one to two years for commercial buildings. For facilities in high-ground-flash-density zones (common in the southeastern and midwestern United States), annual inspections are strongly advisable. These inspections verify that no conductors have been damaged, disconnected, or corroded; that all bonding connections remain intact; and that surge protection devices have not been consumed by prior events.

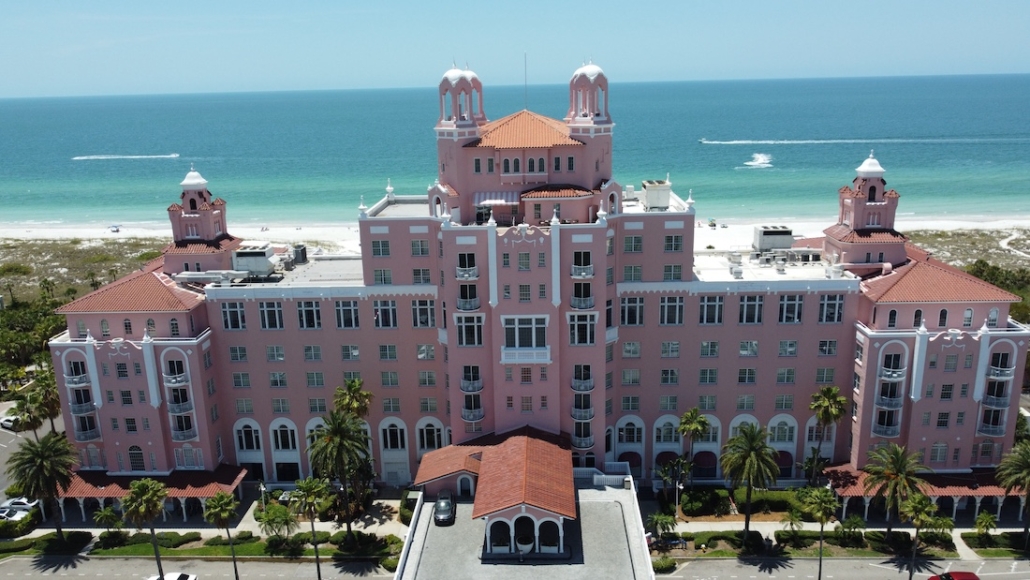

commercial building retrofit surge protection grounding system inspection and certification

Choosing the Right Contractor for Your Retrofit Lightning Protection Project

Not every electrical contractor or roofing company is qualified to design and install a compliant lightning protection system. Lightning protection is a specialized trade with its own certification pathway, standards body, and inspection framework. When evaluating contractors for a commercial retrofit project, look for:

UL-listed installer status (UL 96A and UL Master Label capability)
LPI (Lightning Protection Institute) member status and certified installer credentials
Demonstrated experience with retrofit installations on similar building types
Willingness to provide a formal system design document before installation
References from completed commercial retrofit projects in your region
Clear documentation of grounding test results and third-party inspection coordination

Be cautious of contractors who offer to add lightning rods to an existing building without a proper survey and system design, who cannot provide UL Master Label certification upon completion, or who propose grounding arrangements that do not include resistance testing. These are indicators of non-compliant work that may create liability rather than reduce it.

Ready to Move Forward with Your Retrofit Lightning Protection System Installation?

Retrofitting an older commercial building with a lightning protection system is a project that requires expertise, engineering discipline, and hands-on field experience. The challenges are real — but they are solvable. Buildings of every age, style, and construction type have been successfully retrofitted with compliant, certified systems that protect assets, occupants, and operations.

If your facility lacks compliant lightning protection or has a system that has never been formally inspected and certified, now is the time to act. Storm seasons do not wait for convenient moments. A proactive retrofit investment protects your property value, satisfies insurer requirements, and gives facility managers and building owners the confidence that their structure is prepared for whatever the sky delivers.

Contact our team today to schedule a no-obligation site assessment for your commercial retrofit lightning protection project. We serve facility managers, property owners, and building engineers across the Tampa Bay Region.

Frequently Asked Questions: Retrofit Lightning Protection for Commercial Buildings

How long does a retrofit lightning protection installation take on a commercial building?

Project duration depends on building size, complexity, and the scope of surge protection work required. A mid-size single-story commercial building may be completed in one to three days. A multi-story complex with historic facade constraints and full surge protection integration can run two to four weeks. Your contractor should provide a phased project schedule as part of the design proposal.

Will a retrofit lightning protection system damage my building’s facade or roof?

Properly executed retrofit installations use fastening systems specifically designed to avoid moisture infiltration and surface damage. Non-penetrating attachment systems for membrane roofs and concealed raceways for masonry facades are standard tools in the retrofit contractor’s kit. Any penetrations required are sealed with appropriate materials and documented.

Does my insurance company require lightning protection certification?

Requirements vary by carrier and policy. Many commercial insurers are moving toward requiring verified compliance for properties in high-risk areas. Regardless of current policy language, providing your insurer with UL Master Label certification after a retrofit often results in favorable premium adjustments. Always consult with your insurance broker as part of the pre-installation planning process.

Can surge protection alone substitute for a full lightning protection system?

No. Surge protective devices are a critical component of a complete lightning protection strategy, but they do not provide the air terminal and grounding infrastructure needed to intercept and safely divert a direct strike. NFPA 780 defines a complete system that includes both the structural protection components and the surge protection layer — neither is sufficient without the other.
